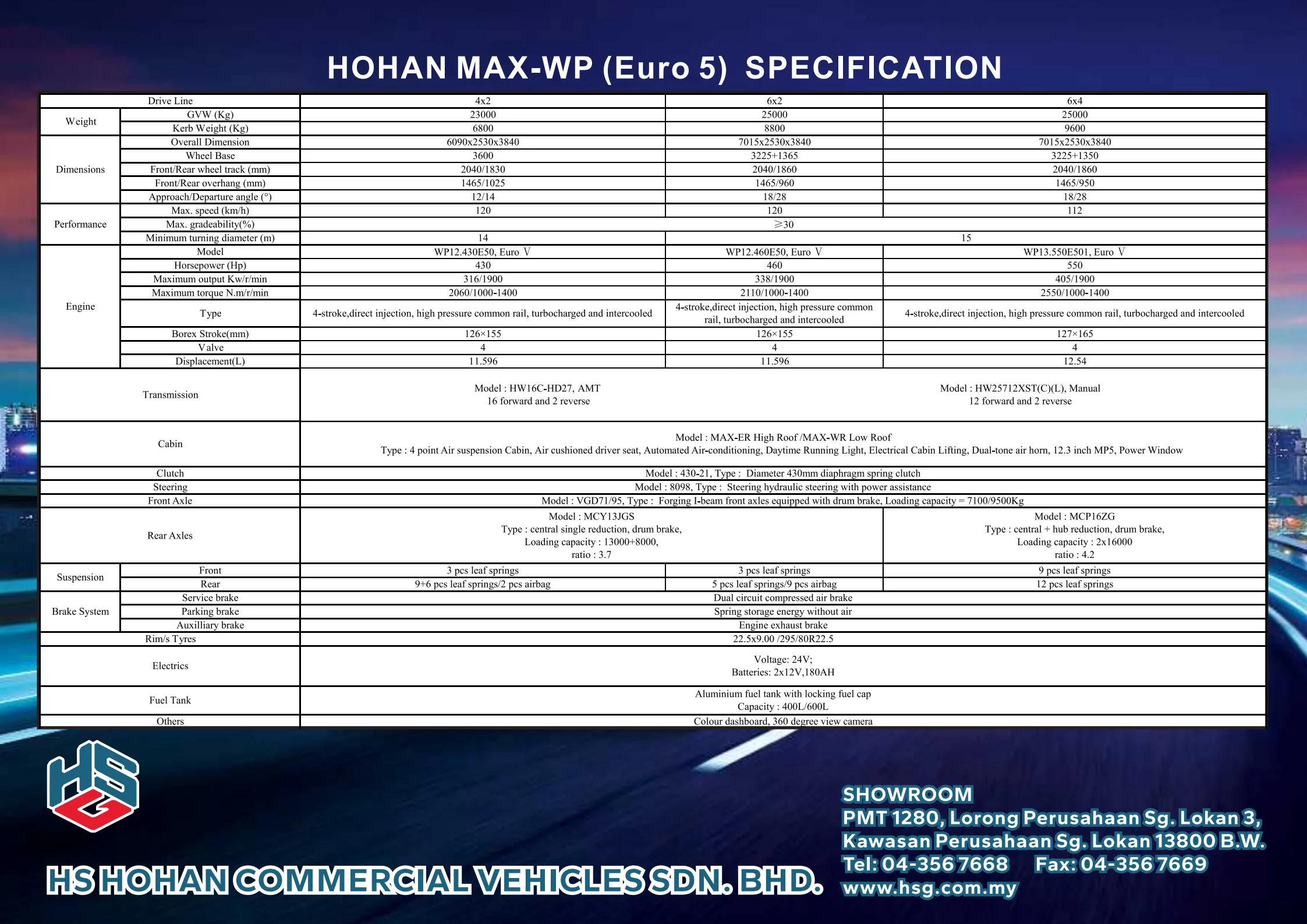

| Weight |
GVW (Kg) |
23000 |
25000 |
25000 |
| Kerb Weight (Kg) |
6800 |
8800 |
9600 |
| Dimensions |
Overall Dimension |
6090x2530x3840 |
7015x2530x3840 |
7015x2530x3840 |
| Wheel Base |
3600 |
3225+1365 |
3225+1350 |
| Front/Rear Wheel Track (mm) |
2040/1830 |
2040/1860 |
2040/1860 |
| Front/Rear Overhang (mm) |
1465/1025 |
1465/960 |
1465/950 |
| Approach/Departure angle (°) |
Dec-14 |
18/28 |
18/28 |
| Performance |
Max. Speed (km/h) |
120 |
120 |
112 |
| Max. Gradeability (%) |
≧30 |
| Minimum Turning Diameter (m) |
14 |
15 |
15 |
|
Model |
WP12.430E50, Euro V |
WP12.460E50, Euro V |
WP13.550E501, Euro V |
| Engine |
Horsepower(Hp) |
430 |
460 |
550 |
| Maximum Output Kw/r/min |
316/1900 |
338/1900 |
405/1900 |
| Maximum Torque N. m/r/min |
2060/1000-1400 |
2110/1000-1400 |
2550/1000-1400 |
| Type |
4-stroke, direct injection, high pressure common rail, turbocharged and intercooled |
| Borex Stoke |
126×155 |
126×155 |
127×165 |
| Valve |
4 |
|
Displacement |
11.596 |
11.596 |
12.54 |
| Transmission |
Model: HW16C-HD27, AMT 16 forward, 2 reverse |
| Model: HW25712XST(C)(L), Manual 12 forward, 2 reverse |
| Cabin |
Model: MAX-ER High Roof / MAX-WR Low Roof |
| Type: 4-point Air suspension Cabin, Air cushioned driver seat |
| Automated Air-conditioning, Daytime Running Light, Electrical Cabin Lifting |
| Dual-tone air horn, 12.3 inch MP5, Power Window |
| Clutch |
Model: 430-21, Type: Diameter 430mm diaphragm spring clutch |
| Steering |
Model: 8098, Type: Steering hydraulic steering with power assistance |
| Front Axle |
Model: VGD71/95, Type: forging I-beam front axles equipped with drum brake, Loading Capacity: 7100/9500kg |
| Rear Axles |
Model: MCY13JGS |
Model: MCP16ZG |
| Type: Central single reduction, drum brake |
Type: Central + hub reduction, drum brake |
| Loading capacity: 13000+8000 |
Loading capacity: 2×16000 |
| Ratio: 3.7 |
Ratio: 4.2 |
| Suspension |
Front |
3 pcs leaf springs |
9 pcs leaf springs |
| Rear |
9+6 pcs leaf springs/2 pcs airbag |
5 pcs leaf springs/9 pcs airbag |
12pcs leaf springs |
| Brake System |
Service brake |
dual circuit compressed air brake |
| Parking brake |
spring storage energy without air |
| Auxiliary brake |
Engine exhaust brake |
| Rims/Tyres |
22.5×9.00, 295/80R22.5 |
| Electrics |
Voltage: 24V; Batteries:2x12V, 180AH |
| Fuel Tank |
Aluminum fuel tank with locking fuel cap, Capacity: 400L/600L |
| Others |
Colour dashboard, 360 view camera |
